Forget niche champions, the AMD Ryzen 7 7700X is the AM5 all-around ace. Think of it as the agile fighter jet of processors, equally adept at soaring through demanding games and juggling productivity tasks with a smile. Sure, it doesn’t pack the raw muscle of its heavyweight brethren, but this 8-core, 16-thread warrior delivers smooth performance across the board, all while keeping a cool head (and wallet).
| SPECIFICATIONS | |
| Product |

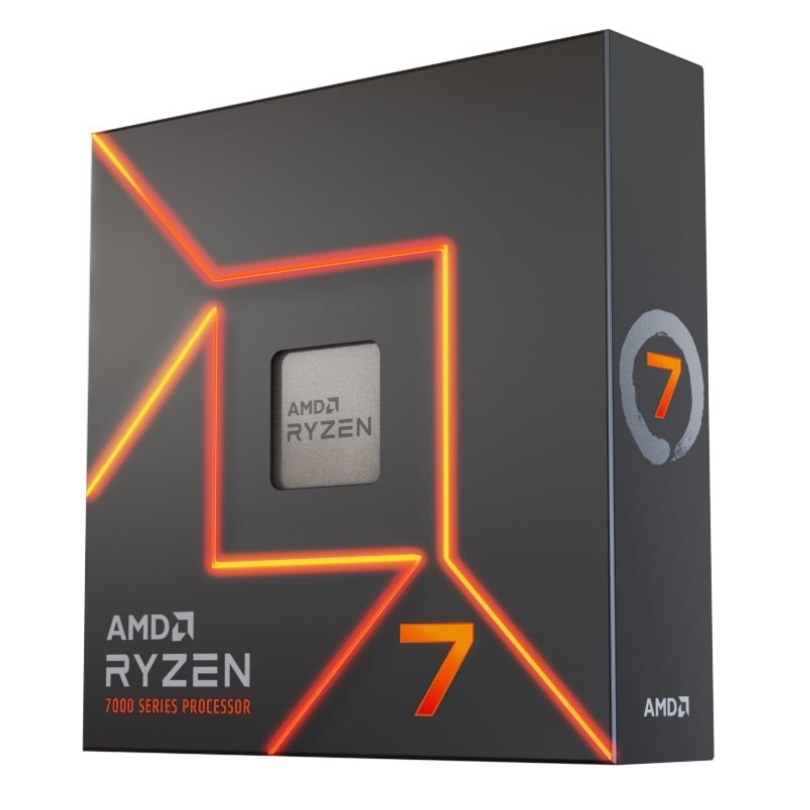

AMD Ryzen 7 SOCKET AM5 7700X
|
| Brand | AMD |
| Series |
Ryzen 7 (5th Gen, Zen 4)
|
| Model |
7700X (100-100000591WOF)
|
| CPU | |
| Core Arrangement | 8 Zen 4 cores |
| Number of CPU Cores | 8 |
| Number of Threads | 16 |
| Base Clock | 4.50GHz |
| Boost Clock | Up to 5.40GHz |
| Total L1 Cache | 512KB |
| Total L2 Cache | 8MB |
| Total L3 Cache | 32MB |
| Default TDP | 105W |
|
Lithography Process
|
Zen 4 Cores – TSMC 5nm FinFET
|
|
Zen 4 IO Die – TSMC 6nm FinFET
|
|
| Memory | |
| System Memory Type | DDR5 |
| Maximum Memory | 128GB |
| Memory Channels |
2, Dual-channel DDR5 memory architecture
|
| System Memory Specification |
5200MHz supported
|
| Overclocking Support |
Yes, Up to 6400MHz with AMD EXPO memory profiles
|
|
Supported Memory Speeds
|
1x1R 5200 MT/s |
| 1x2R 5200 MT/s | |
| 2x1R 3600 MT/s | |
| 2x2R 3600 MT/s | |
| ECC Support |
Yes (check with your motherboard vendor for support)
|
| Graphics | |
| Integrated |
AMD RDNA 2 Graphics
|
| Execution Units |
2 EU, 128 Shaders
|
| Base Clock | 400MHz |
| Boost Clock | 2200MHz |
|
Supported Video Outputs
|
DisplayPort |
| HDMI | |
|
USB Type-C DisplayPort Alternate Mode
|
|
| Platform | |
| Unlocked Multiplier | Yes |
| CPU Socket | AM5 |
| Socket Count | 1P |
| Thermal Solution | N/A |
| Maximum Operating Temperature (Tjmax) | 95°C |
| Connectivity | |
| USB Type-C Support | Yes |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 2.0 (480Mbps) Ports | 1 |
|
Native CPU PCIe Lanes
|
28 lanes total |
|
16x PCIe lanes for graphics
|
|
|
4x PCIe lanes for NVMe storage
|
|
|
4x PCIe lanes for AMD 600 series chipset
|
|
|
Additional Motherboard Chipset PCIe Lanes
|
AMD X670E: 12x PCIe 4.0 lanes
|
|
AMD X670: 12x PCIe 4.0 lanes
|
|
|
AMD B650E: 8x PCIe 4.0 lanes
|
|
|
AMD B650: 8x PCIe 4.0 lanes
|
|
| NVMe Support |
Boot, RAID0, RAID1, RAID10
|
|
Operating System Support
|
Windows 11 64-bit Edition
|
|
Windows 10 64-bit Edition
|
|
| RHEL x86 64-bit | |
|
Ubuntu x86 64-bit
|
|
|
*Operating System (OS) support will vary by manufacturer.
|
|
| General | |
|
Advanced Features
|
AMD StoreMI Technology
|
|
AMD Ryzen VR-Ready Premium
|
|
|
PCI Express Gen 5 support
|
|
|
AMD EXPO Memory Overclocking Profiles
|
|
|
AMD Precision Boost 2.0
|
|
|
AMD Precision Boost Overdrive
|
|
|
AMD StoreMI Technology
|
|
|
Curve Optimizer Voltage Offsets
|
|
|
AMD Ryzen Master Support
|
|
| CPU Extensions |
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX( ), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
|
| Warranty Information | |
| Warranty | 3 Year Warranty |
