This Gigabyte H610M K Ultra Durable DDR5 H610M-K-rev-10 Intel H610 LGA 1700 Raptor Lake Micro-ATX Desktop Motherboard maestro isn’t just a motherboard, it’s the cornerstone of your digital dreams. Engineered for 12th and 13th Gen Intel® Raptor Lake processors, the H610M K offers rock-solid stability and efficient performance for everyday computing, light gaming, and creative endeavors.
| SPECIFICATIONS | |
| Product |
Gigabyte H610M K Ultra Durable DDR5 H610M-K-rev-10 Intel H610 LGA 1700 Raptor Lake Micro-ATX Desktop Motherboard
|
| Brand | Gigabyte |
| Series |
H610 Motherboard Series
|
| Model |
H610M K DDR5 Rev 1.0
|
| CPU Support |
Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
|
| Chipset |
Intel H610 Express
|
| Memory Support | |
| 13th Gen Intel Core i9/i7 |
Support for DDR5 5600/5200/4800/4400 MT/s memory modules
|
| 13th Gen Intel Core i5/i3 |
Support for DDR5 4800/4400 MT/s memory modules
|
|
12th Gen Intel Core, Pentium Gold and Celeron
|
Support for DDR5 4800/4400 MT/s memory modules
|
|
2x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
|
|
|
Dual channel memory architecture
|
|
|
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
|
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
|
|
|
Support for Extreme Memory Profile (XMP) memory modules
|
|
| Video | |
| HDMI |
1x HDMI 2.0 port, supporting a maximum resolution of 4K 4096×2160 @ 60Hz, Support for HDCP 2.3, and HDR
|
|
DisplayPort
|
1x DisplayPort 1.2 port, supporting a maximum resolution of 4K 4096×2160 @ 60Hz, Support for HDCP 2.3, and HDR
|
|
Integrated Intel graphics required. Actual support may vary by CPU.
|
|
| Expansion Slots | |
| CPU Direct |
1x PCIe 4.0 x16 Physical, x16 Electrical slot
|
| Intel H610 Chipset |
1x PCIe 3.0 x1 Physical, x1 Electrical slot
|
| Storage | |
| CPU Direct |
1x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
|
|
Intel H610 Chipset
|
4x SATA 6Gb/s ports
|
|
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
|
|
| Networking | |
| LAN |
Realtek Gigabit LAN 10/100/1000Mbps
|
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
|
Codec
|
Realtek 7.1 Surround Sound High Definition Audio CODEC
|
|
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
|
|
|
Support for S/PDIF Out (internal header)
|
|
| Connectivity | |
|

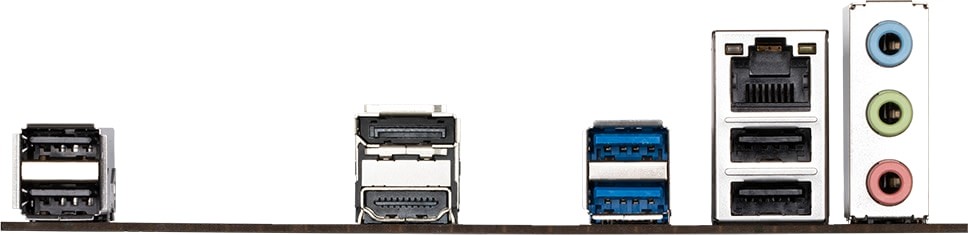

Ports
|
1x HDMI port |
| 1x DisplayPort | |
|
2x USB 3.2 Gen 1 ports
|
|
|
4x USB 2.0/1.1 ports
|
|
| 1x RJ-45 port | |
| 3x audio jacks | |
| General | |
|
Internal Connectors
|
1x 24-pin ATX main power connector
|
|
1x 8-pin ATX 12V power connector
|
|
|
1x CPU fan header
|
|
|
1x system fan header
|
|
|
1x M.2 Socket 3 connector
|
|
|
2x SATA 6Gb/s connectors
|
|
|
1x front panel header
|
|
|
1x front panel audio header
|
|
|
1x USB 3.2 Gen 1 header
|
|
|
1x USB 2.0/1.1 header
|
|
|
1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
|
|
|
1x Clear CMOS jumper
|
|
| Buttons | N/A |
| LED Displays | N/A |
|
BIOS
|
128Mb Flash ROM, UEFI AMI BIOS
|
|
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
|
| Form Factor |
Micro-ATX Form Factor, 230 x 215 mm (H x W)
|
|
Operating System Support
|
Windows 10 64-bit
|
|
Windows 11 64-bit
|
|
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer’s Website | Product Website |
| Our Website | |
